UK-1 PICKUP

UK-1 makes it simple to reproduce the authentic sound of your uke without modification.

Simply slide this piezo ukulele pickup onto the tie block and retighten the strings.

It's a passive uke pickup that fits most soprano, concert, tenor, and baritone ukuleles with a tie block.

Features

Simply slide this piezo ukulele pickup onto the tie block and retighten the strings.

The piezo element is encased in elegant and stylish White beech while retaining lightweight assembly to achieve maximum tonal sensitivity.

UK-1 has a passive design that reproduces the natural sound of the with no need for a battery.

The pickup fits all ukes with a standard bridge and tie block—Soprano, Concert, Tenor and Baritone.

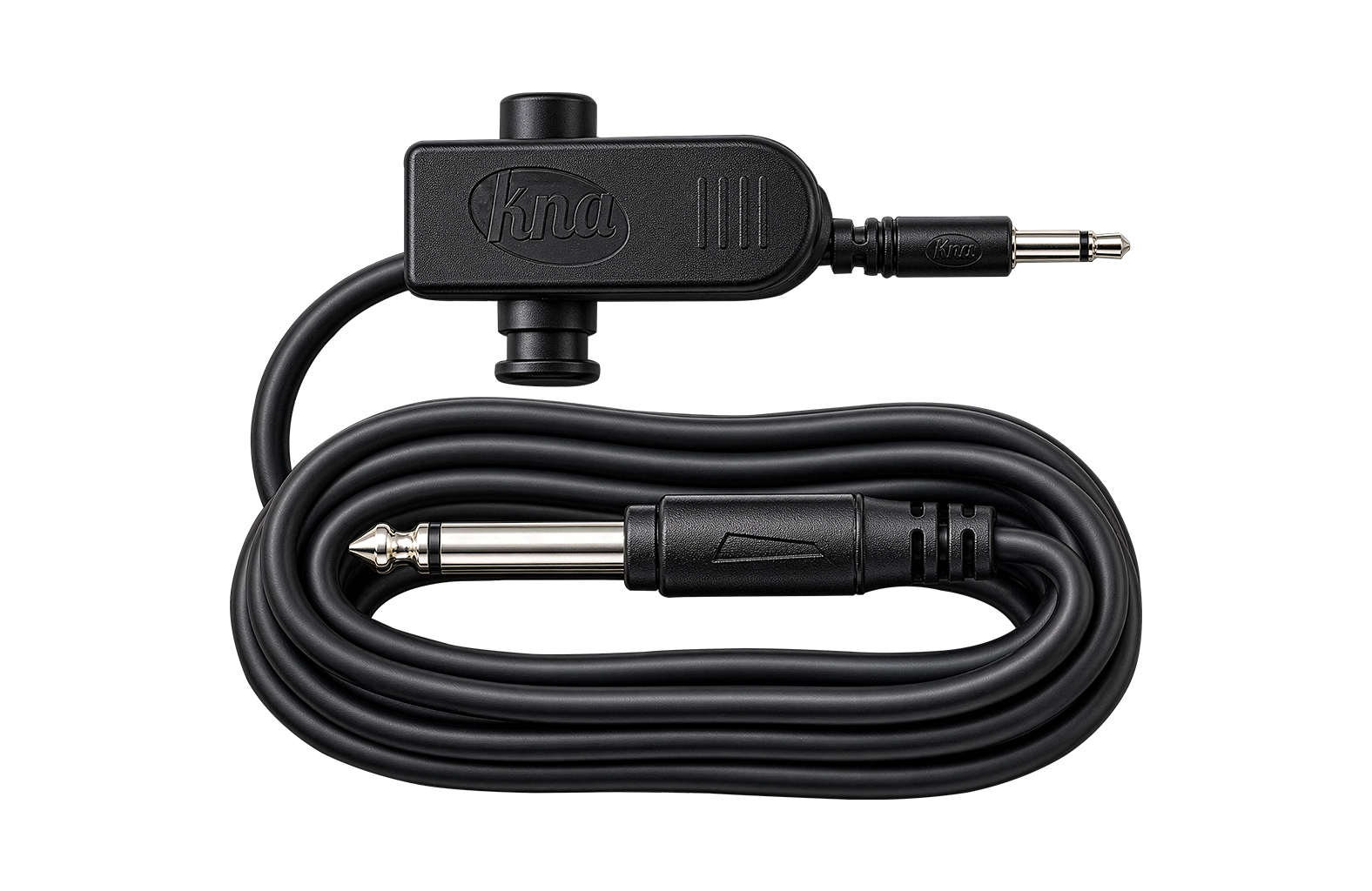

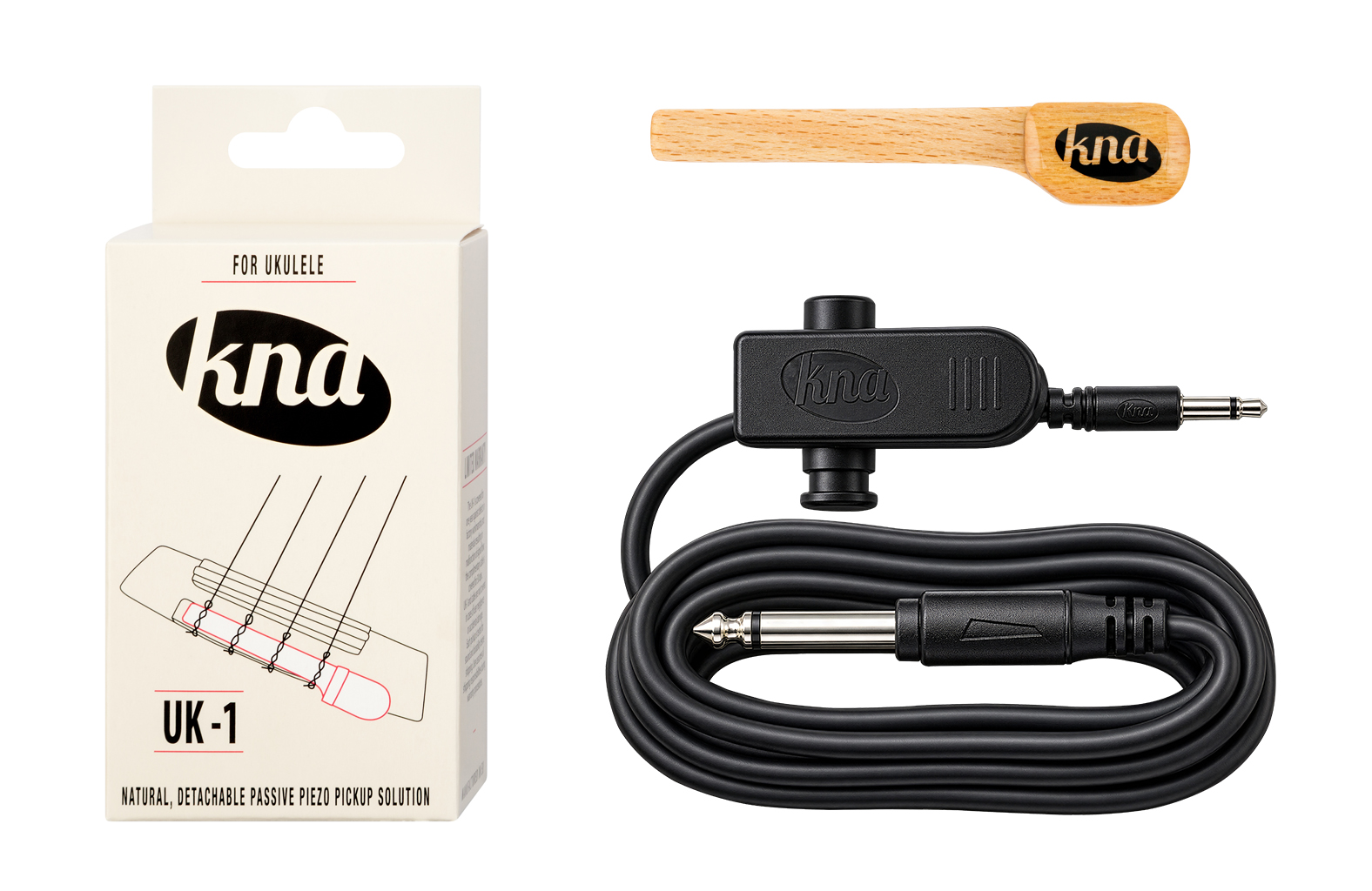

Two cables are included — a 9-ft. 1/8" to 1/4" and a 3-ft. 1/8" to female 1/4" jumper with safety clip to connect with your instrument cable.

Follow our installation guide through the following steps:

Loosen the strings of your ukulele. Make sure there is enough space under the loops so the pickup can slide through without any pressure.

Slide the pickup under the loops. Position it evenly on the tie bar while tightening the strings and retune.

Hold the pickup head securely while attaching and detaching the cable.

You are ready to enjoy your new pickup!

Specifications
Weight	3.1g / 0.109oz
Wood	White beech
Maximum Impedance	500 Ω
Cable	3meter / 9'
Measurements
Specified part	Letter	Size in MM (from*)	Size in MM (to*)	Size in INCH (from*)	Size in INCH (to*)
Transducer length	a	55,1	55,2	2,169	2,173
Jack housing length	b	17,3	17,4	0,681	0,685
Total pickup length	c	72,5	-	2,854	-
Transducer width	d	7,95	8,0	0,313	0,315
Active signal transfer area length	e	50,0	-	1,969	-
Transducer thickness	f	1,8	1,9	0,071	0,075
Jack housing height	g	9,2	9,3	0,362	0,366
*Our handmade pickups may vary slightly in size due to the nature of the building
